Ever wondered why chainsaw chains come in different sizes? The secret lies in the chain pitch. Chain pitch is the distance between rivets on a chain, crucial for proper fit and performance. In this post, you’ll learn what chain pitch is, why it matters, and the common sizes to choose from.
Chain pitch is the distance between any three consecutive rivets on a chainsaw chain divided by two. To measure it, pick any three rivets in a row, measure the distance from the first rivet to the third, then divide that number in half. This gives you the pitch measurement, which determines the size of the chain.
For example, if the distance between three rivets is 3/4 inch, dividing by two means the pitch is 3/8 inch. This measurement is important because the pitch must match the drive sprocket and the guide bar’s nose sprocket for the chain to fit and work properly.
Chain pitch is usually expressed in inches and can appear either as a fraction or a decimal. Common pitches include:
1/4 inch (0.25")
0.325 inch (sometimes written as .325")
3/8 inch (0.375")
0.404 inch (.404")
3/4 inch (0.75")
The fraction form is often used in manuals and product descriptions, while decimals appear in technical specifications. Knowing both formats helps when shopping for chains or replacement parts.
To measure chain pitch accurately, you can use a ruler or a caliper. Here’s how:
Lay the chain flat on a surface.
Use the ruler or caliper to measure from the center of the first rivet to the center of the third rivet.
Divide the distance by two to get the pitch.
Using a caliper gives more precise results, especially for smaller pitches. Avoid measuring between just two rivets, as this will give an incorrect pitch.
Also, make sure the chain is clean and not stretched or worn out, as wear can affect measurements. If the chain is old or damaged, consider replacing it rather than relying on a worn pitch measurement.
Chainsaw chains come in various pitches, each designed for specific saw sizes and cutting tasks. Understanding these common pitch sizes helps you pick the right chain for your saw and work type.
The 1/4" pitch chain is the smallest and usually fits very small electric or low-powered chainsaws. These chains have tiny drive links, making them lightweight and ideal for light pruning, trimming, or small branch cutting. They offer fast cutting speeds but aren't built for heavy-duty work or large trees.
The 0.325" pitch is popular for battery-powered and mid-power saws, especially those around 40-60cc engine size. There are two types:
Standard 0.325" pitch: Has larger cutting teeth and deeper drive links, perfect for medium tasks requiring more power.
0.325" Low-Profile (LP) chains: Feature smaller cutting teeth and shallower drive links, designed for lightweight, high-powered battery saws. They reduce kickback and improve control.
These chains balance speed and power well, suitable for homeowners and professionals doing moderate cutting.
The 3/8" pitch is the most common size worldwide and fits medium-power chainsaws, typically 60-90cc engines. Like the 0.325", it comes in:
Standard 3/8" pitch: Larger teeth and deeper drive links for heavy-duty cutting.
3/8" Low-Profile (LP): Smaller teeth for better handling and less kickback, often used on less powerful saws under 40cc.
This pitch suits general-purpose cutting tasks, including felling medium trees and cutting firewood.
Chains with a 0.404" pitch fit large chainsaws, usually over 90cc. These chains have big, strong teeth and thick drive links, making them ideal for heavy-duty cutting like large tree felling and industrial logging. They provide excellent durability and power but require more engine strength to operate efficiently.
The largest common chain pitch is 3/4", used exclusively on hydraulic-driven mechanical harvesters and commercial docking machines. These chains aren't for hand-operated saws. Their massive size and strength handle the toughest industrial applications, cutting large timber quickly and reliably.
Chain pitch must perfectly match the drive sprocket on your chainsaw. The drive sprocket has teeth designed to fit the chain's drive links, which are spaced according to the pitch. If the pitch of the chain differs from the sprocket, the chain won't sit properly on the sprocket teeth. This mismatch causes skipping, uneven wear, and can quickly damage both the chain and sprocket.
For example, a 3/8" pitch chain requires a sprocket with teeth spaced for 3/8" pitch. Using a 0.325" pitch chain on a 3/8" sprocket will cause the chain to ride unevenly, increasing the chance of chain derailment or breakage.

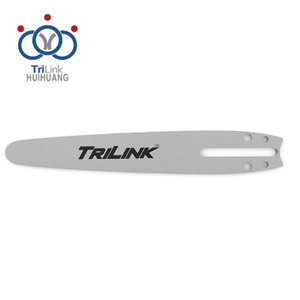

The guide bar, especially its nose sprocket, must also match the chain pitch. The nose sprocket helps guide the chain smoothly around the bar tip. If the pitch of the bar nose sprocket differs from the chain pitch, the chain may bind, wear unevenly, or even derail during operation.
Bars with sprocket noses come in specific pitch sizes to fit chains precisely. Using a chain with a different pitch than the bar nose sprocket can cause excessive vibration and premature wear on the bar, chain, and sprockets.
Mixing chain pitches with sprockets or guide bars designed for another pitch leads to several issues:
Increased Wear and Damage: Mismatched components wear out faster, leading to costly replacements.
Poor Cutting Performance: The chain may not run smoothly, reducing cutting efficiency and increasing vibration.
Safety Risks: A chain that doesn’t fit properly can derail or break, risking injury.
Warranty Void: Manufacturers often void warranties if mismatched parts cause damage.
Always verify that the chain pitch, drive sprocket pitch, and bar nose pitch are identical before operating your chainsaw. This ensures optimal performance, longevity, and safety.
Smaller pitch chains, like 1/4" or 0.325", usually have smaller drive links and narrower cutting teeth. This design helps the chain move faster through softer wood, making them ideal for light-duty tasks such as pruning, trimming, or cutting small branches. Because they require less power to operate, these chains put less strain on the saw’s motor, improving energy efficiency and allowing longer run times, especially important for battery-powered saws. Their lighter weight also makes handling easier, which benefits users during extended use.
Larger pitch chains, such as 3/8" and 0.404", feature bigger cutting teeth and thicker drive links. These chains deliver more cutting power and durability, making them perfect for heavy-duty tasks like felling large trees or cutting dense hardwoods. They can handle tougher materials without dulling as quickly. However, they tend to move slower through softer wood compared to smaller pitch chains. The extra size and strength mean they demand more engine power, so they are best suited for chainsaws with higher cc ratings to maintain smooth operation.
Chain pitch directly influences the energy needed to drive the chainsaw. Smaller pitch chains require less torque, which reduces motor strain and energy consumption. This can extend the life of the saw’s engine or battery. Larger pitch chains, while more powerful, increase mechanical load, causing the motor to work harder and consume more fuel or battery charge. Overusing a large pitch chain on a low-powered saw can lead to overheating and premature wear. Choosing the right pitch helps balance cutting power and energy efficiency, preserving your equipment.
Selecting the correct chain pitch depends heavily on the type of wood and the cutting job. For softwoods like pine or fir, smaller pitch chains excel due to their speed and smooth cutting action. For hardwoods such as oak or maple, larger pitch chains provide the strength needed to cut effectively without frequent sharpening. For mixed tasks or general-purpose use, a mid-range pitch like 3/8" offers a good compromise between speed and power. Always match the chain pitch to the saw’s power and the wood’s hardness to optimize performance and reduce wear.
Always start by checking your chainsaw’s manufacturer recommendations. The user manual or product label usually specifies the correct chain pitch. Using the recommended pitch ensures the chain fits perfectly on the drive sprocket and guide bar, preventing damage and poor performance. If you don’t have the manual, visit the manufacturer’s website or contact customer support. They can help you identify the right pitch based on your chainsaw model.
Next, consider what kind of cutting you’ll do and your saw’s power. Smaller pitch chains (like 1/4" or 0.325") suit light tasks such as pruning or trimming small branches, especially on low-powered or battery saws. Larger pitch chains (3/8" or 0.404") fit more powerful saws and handle heavy-duty tasks like felling large trees or cutting hardwood.
Matching chain pitch to saw power avoids overloading the motor or underperforming on tough jobs. For example, a 0.404" pitch chain on a small saw may strain the motor, while a 1/4" pitch chain on a big saw won’t provide enough cutting force.
Chain pitch isn’t the only factor; chain style and gauge matter too. The gauge is the thickness of the drive links that fit into the bar groove and must match the guide bar’s groove size. Common gauges include .050", .058", and .063".
Chain style affects cutting performance and safety. Full chisel chains cut fast but kick back more, while low-kickback chains offer safer operation but cut slower. Always ensure the chain’s pitch, gauge, and style fit your saw and intended use.
Buy chains from reputable dealers or directly from manufacturers to guarantee compatibility and quality. Online marketplaces can offer variety, but verify chain pitch, gauge, and style before purchasing. Avoid mixing parts from different brands or unknown sources, as mismatched chains can cause damage or safety hazards.
When buying, double-check product descriptions and consult customer reviews. If unsure, ask sellers about compatibility with your saw model. Keeping your chain, sprocket, and guide bar pitch matched ensures smooth operation and extends your chainsaw’s life.
Chain gauge refers to the thickness of the drive links on a chainsaw chain. These drive links fit into the groove of the guide bar, so the gauge must match the bar's groove width. If the gauge is too thick, the chain won't fit properly; if too thin, the chain will wobble during operation, causing unsafe cutting and excessive wear.
Gauge is usually measured in thousandths of an inch, such as .050", .058", or .063". This measurement is critical because it affects how securely the chain runs on the bar, influencing safety and cutting performance.
The gauge ensures the chain sits snugly in the guide bar groove. A proper fit reduces vibration and keeps the chain stable during cutting. A chain with the correct gauge runs smoothly, improving cutting accuracy and reducing the chance of the chain jumping off the bar.
If the gauge is mismatched, the chain may cause uneven wear on the bar and sprocket, shorten chain life, and increase the risk of accidents. For example, a thinner gauge chain in a wider bar groove may cause the chain to twist or derail under load.
Several common gauge sizes fit most chainsaws:
.043" – Used on very small electric or battery-powered saws.
.050" – Popular for lightweight chainsaws and low-profile chains.
.058" – Common for mid-range chainsaws.
.063" – Often found on professional-grade chainsaws.
.080" and .122" – Mainly for heavy-duty industrial or mechanical harvesting equipment.
Choosing the right gauge depends on your chainsaw model and cutting needs. For instance, a .050" gauge fits many low-profile chains used on battery saws, while a .063" gauge suits larger saws for heavy-duty cutting.
Both chain gauge and pitch must match the guide bar and sprocket exactly. Pitch determines the chain size and spacing between rivets, while gauge affects the fit in the bar groove. Mismatched pitch or gauge can cause poor performance, damage, and serious safety hazards.
Always check your chainsaw’s manual or manufacturer specifications before purchasing chains. When replacing chains, confirm both pitch and gauge match your guide bar and sprocket. Using a chain with the correct pitch but incorrect gauge can still lead to chain derailment or bar damage.
Over time, chainsaw chains experience wear that affects both pitch and gauge measurements. As the chain cuts through wood, the drive links and rivets gradually wear down, causing slight stretching and deformation. This wear can make the pitch measurement less accurate because the rivet spacing may increase slightly. Similarly, the gauge—the thickness of the drive links—can thin out due to friction inside the guide bar groove. These changes can lead to poor fit, increased vibration, and unsafe operation.
Worn chains may not sit properly on the sprockets or guide bar, causing uneven cutting and accelerated wear on all components. If you notice the chain feels loose or doesn’t track correctly, it could be due to pitch changes from wear. Also, measuring an old chain’s pitch or gauge without accounting for wear can give misleading results, possibly leading to buying the wrong replacement chain.
To maintain safe and efficient operation, regularly inspect your chain for wear signs and measure pitch and gauge accurately:
Visual Inspection: Look for stretched links, damaged rivets, or uneven wear on drive links.
Pitch Measurement: Use a caliper or ruler to measure the distance between the centers of three consecutive rivets, then divide by two. Do this on multiple chain sections to check for stretch.
Gauge Measurement: Use a chain gauge tool or caliper to measure the thickness of the drive links. Compare the measurement to the original gauge specification.
Check Fit: Ensure the chain fits snugly in the guide bar groove without excessive play.
Monitor Performance: Pay attention to cutting smoothness and chain tension during use.
If measurements differ significantly from the original specs or the chain feels loose, it’s time to replace it.
Proper maintenance can slow wear and keep pitch and gauge within safe limits longer:
Keep the Chain Sharp: Dull cutters increase cutting resistance, causing more strain and wear.
Lubricate Well: Always use bar and chain oil to reduce friction and heat buildup.
Use the Correct Chain: Match pitch and gauge exactly to your saw’s specifications.
Avoid Over-Tensioning: Too tight chains cause excessive wear on links and sprockets.
Clean Regularly: Remove debris and sawdust from the chain and bar groove.
Rotate Chains: Use multiple chains and rotate them to avoid overusing one chain.
By following these steps, you ensure your chainsaw runs smoothly, safely, and efficiently for a longer time.
Mastering chain pitch is essential for optimal chainsaw performance and safety. The correct pitch ensures proper fit with sprockets and guide bars, preventing damage and improving cutting efficiency. Choosing the right pitch depends on your saw’s power and cutting needs, balancing speed and durability. Always prioritize matching pitch, gauge, and style to maintain safety and extend equipment life. ZHEJIANG TRILINK HUIHUANG CO.TTD offers high-quality chains designed for precise pitch compatibility, delivering reliable performance and durability for all chainsaw users.
A: Chain pitch is the distance between three consecutive rivets on a chainsaw chain divided by two. It determines the chain size and must match the drive sprocket and guide bar for proper fit.
A: Matching chain pitch with the sprocket and guide bar prevents uneven wear, poor cutting performance, and safety risks like chain derailment.
A: Smaller pitch chains cut faster and are ideal for light tasks, while larger pitch chains offer more power and durability for heavy-duty cutting.
A: No, using the wrong chain pitch can damage your saw and reduce safety. Always use the pitch recommended by the manufacturer.
A: Regularly inspect the chain for wear, measure rivet spacing with a caliper, and replace worn chains to maintain correct pitch and safe operation.
